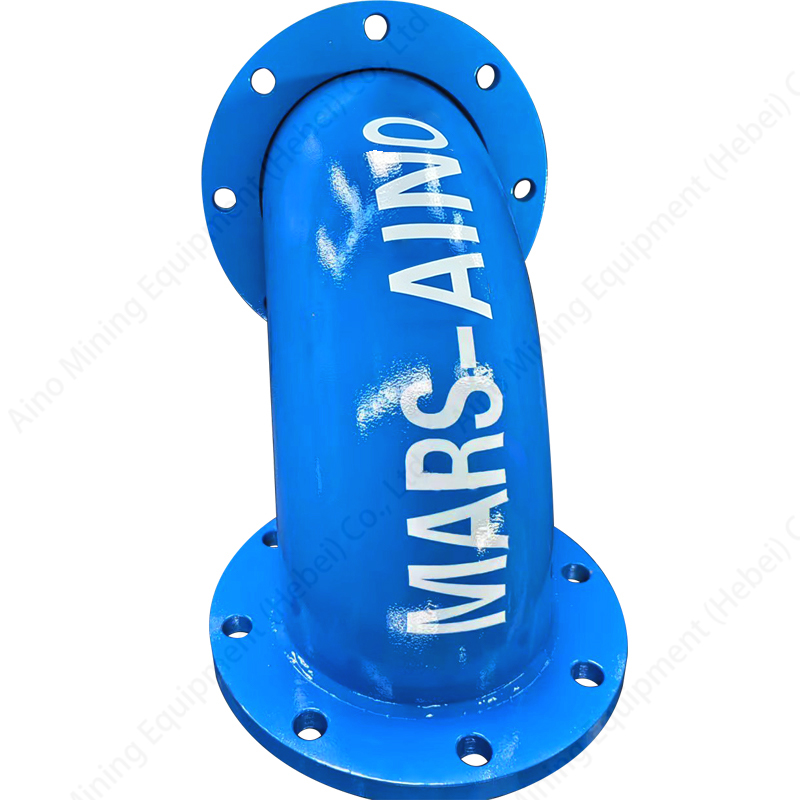

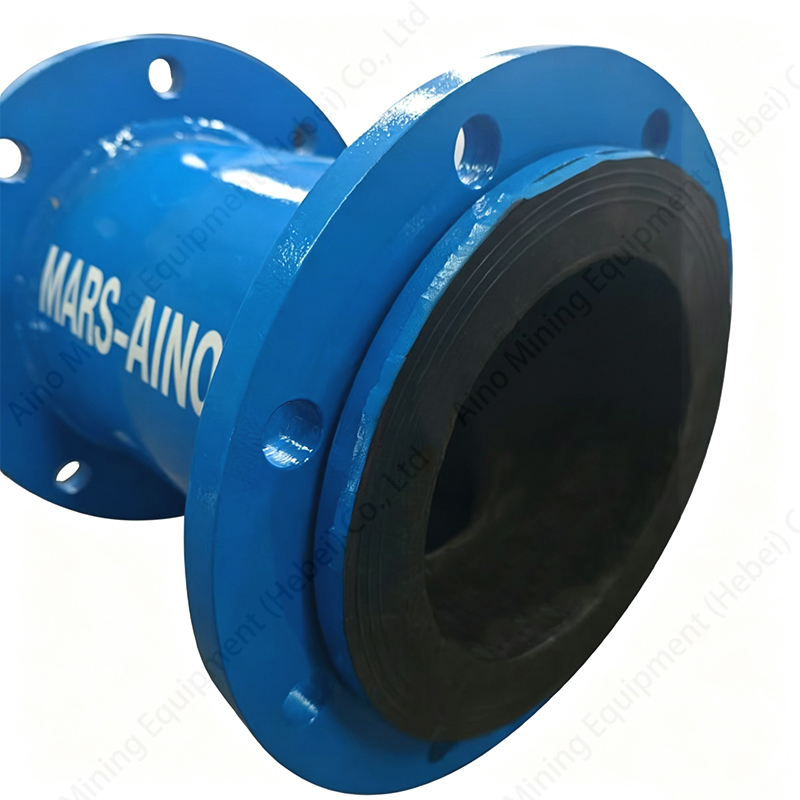

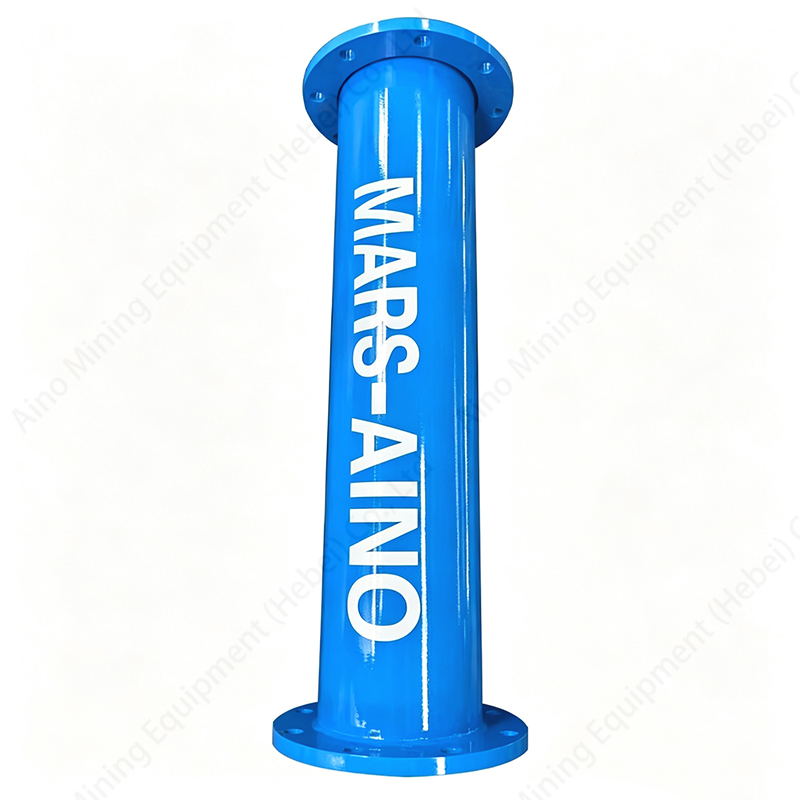

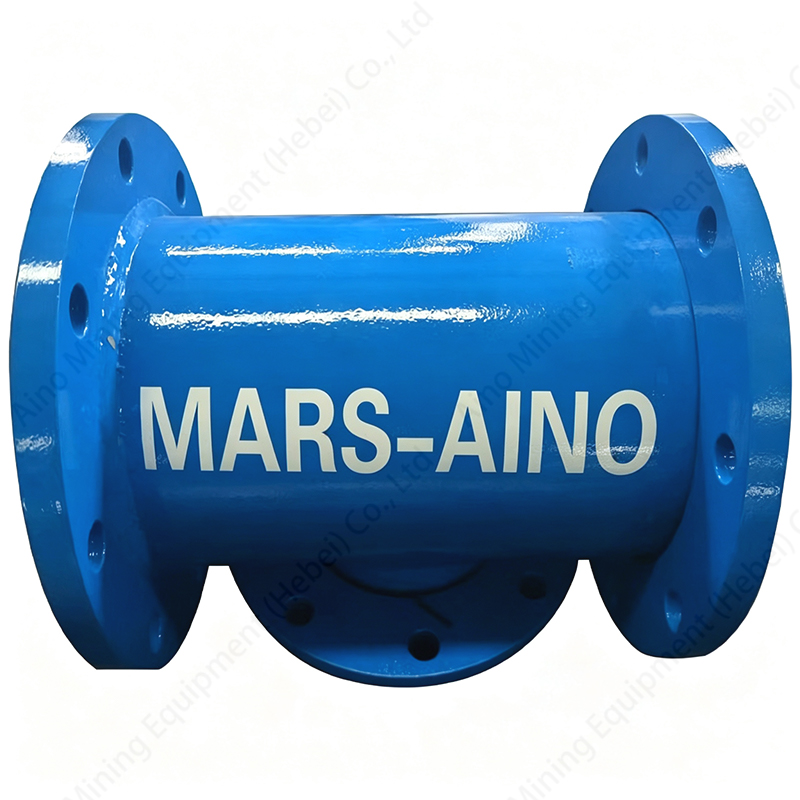

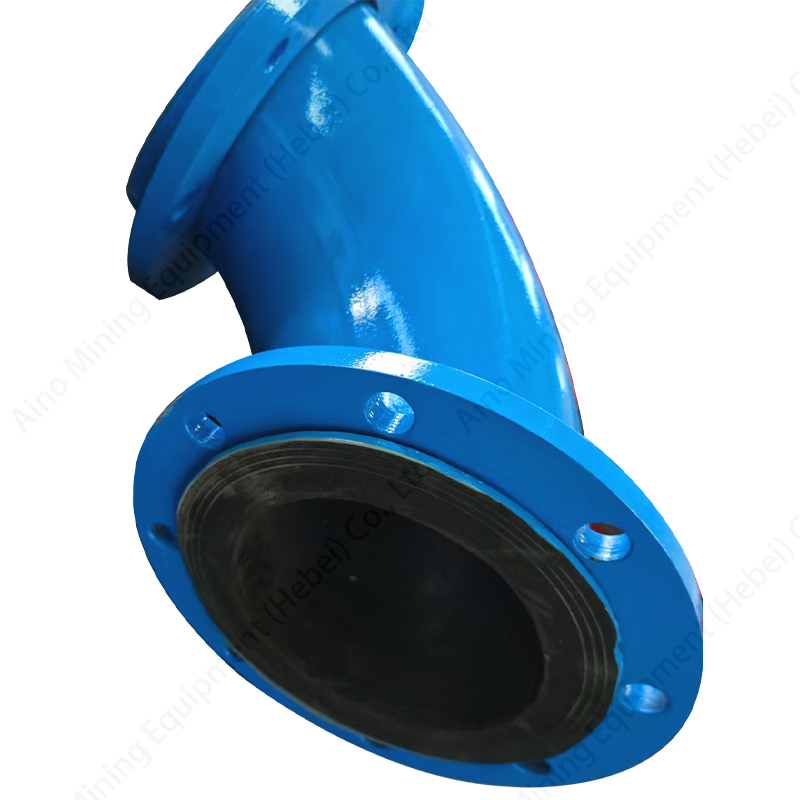

Rubber-lined Steel Pipes

Heavy-Duty Rubber-Lined Steel Pipes for Abrasive Slurry Transportation

Rubber-lined steel pipes are widely used in mining, mineral processing, power plants, dredging, chemical industry, and industrial slurry transportation systems due to their excellent abrasion resistance, corrosion resistance, and structural strength.

The pipe combines:

  • High-strength steel pipe
  • Wear-resistant rubber lining



This dual-layer structure provides:

  • Strong pressure-bearing capacity
  • Excellent wear resistance
  • Corrosion protection
  • Impact absorption
  • Long service life under abrasive slurry conditions

Compared with ordinary steel pipes, rubber-lined steel pipes significantly reduce pipeline wear, maintenance frequency, and operating costs in abrasive material transportation systems.

Item

Specification

Product Name

Rubber-Lined Steel Pipe

Structure

Steel Pipe + Rubber Lining

Pipe Diameter

DN25–DN2000

Steel Material

Carbon Steel / Stainless Steel

Rubber Material

Natural Rubber / Synthetic Rubber

Lining Thickness

Customized

Pipe Length

Customized

Hardness

40–80 Shore A

Working Pressure

Customized

Temperature Resistance

Depends on rubber compound

Connection Type

Flange / Coupling / Clamp

Application

Abrasive Slurry Transportation





140x140

Wear resistance

140x140

Structural strength

140x140

Corrosion protection



Product Structure

Polyurethane-lined steel pipes combine the strength of steel with the wear resistance of polyurethane.



1. Steel Pipe Body

  • High structural strength
  • Suitable for high-pressure systems
  • Good mechanical support



2. Inner Rubber Lining

  • Abrasion resistance
  • Corrosion resistance
  • Impact absorption
  • Smooth slurry flow surface

Industries & Applications



140x140

Mining Industry

140x140

Slurry transportation

140x140

Tailings pipelines



140x140

Concentrate pipelines

140x140

Pump discharge systems

140x140

Mineral Processing Plants



140x140

Hydrocyclone feed systems

140x140

Abrasive slurry transfer

140x140

Power Plants



140x140

Ash slurry transportation

140x140

Desulfurization systems

140x140

Dredging Industry



140x140

Sand slurry pipelines

140x140

Dredging material transportation

140x140

Chemical Industry



140x140

Mild corrosive media transportation

140x140

Aggregate & Cement Plants

140x140

Abrasive material conveying systems







Rubber-Lined Pipe VS Ordinary Steel Pipe

Advantages of Polyurethane-Lined Steel Pipes





  • Excellent Wear Resistance：Wear-resistant rubber lining significantly improves pipeline life in abrasive slurry systems.
  • High Structural Strength：Steel pipe body provides excellent pressure resistance and structural stability.
  • Impact Absorption：Rubber lining absorbs impact energy from solid particles.
  • Corrosion Resistance：Suitable for wet and mildly corrosive environments.
  • Reduced Maintenance Cost：Longer service life reduces maintenance and replacement frequency.
  • Smooth Inner Surface：Improves slurry flow performance and reduces flow resistance.
  • Noise & Vibration Reduction：Rubber lining reduces operational vibration and noise.



140x140



Working Condition Analysis



  • We provide customized rubber-lined pipeline solutions according to:
  • Slurry concentration
  • Particle size
  • Flow velocity
  • Pressure conditions
  • Temperature
  • Chemical exposure
  • Installation environment

Rubber Material Options



  • Natural Rubber
  • Excellent abrasion resistance
  • High elasticity
  • Suitable for mining slurry
  • SBR Rubber
  • Cost-effective wear-resistant solution
  • EPDM Rubber
  • Better heat and weather resistance
  • NBR Rubber
  • Oil-resistant applications





Steel Pipe Options



Steel Type

Application

Carbon Steel

Standard slurry systems

Stainless Steel

Corrosive environments

Thick-Wall Steel Pipe

High-pressure systems





Customized Solutions



  • We support:
  • OEM manufacturing
  • Production according to drawings
  • Customized lining thickness
  • Customized pressure ratings
  • Special flange standards
  • Different rubber compounds
  • Heavy-duty wear-resistant designs

Engineering Services





  • Our engineering team can assist with:
  • Pipeline selection
  • Wear analysis
  • Drawing design
  • Material recommendation
  • Installation suggestions

Factory workshop photos + quality control flowchart



  • Manufacturing Capacity
  • We specialize in mining wear-resistant pipeline manufacturing.
  • Main Production Capabilities
  • Steel pipe fabrication
  • Rubber lining vulcanization
  • Flange welding
  • Large-diameter pipeline production
  • Customized pipeline manufacturing
140x140



140x140

Quality Control



  • Every polyurethane-lined steel pipe undergoes:
  • Raw material inspection
  • Dimension inspection
  • Hardness testing
  • Adhesion testing
  • Pressure testing
  • Appearance inspection





Production Advantages



  • Experienced engineering team
  • Advanced production equipment
  • Stable production capacity
  • Fast response for custom projects
  • Export experience worldwide
140x140
140x140

Service Life



  • Rubber-lined steel pipes are designed for long-term operation under abrasive slurry conditions.
  • Compared with ordinary steel pipes:
  • Better wear resistance
  • Longer service life
  • Reduced downtime
  • Lower maintenance frequency
  • Actual service life depends on:
  • Slurry abrasiveness
  • Particle size
  • Pressure conditions
  • Flow velocity
  • Rubber compound selection





TechnicalTechnical Support



We provide:



  • Technical consultation
  • Drawing confirmation
  • Material selection support
  • Installation guidance
  • After-sales support
140x140
140x140

Copper Mine Slurry Pipeline – Central Asia

140x140

Rubber-lined steel pipelines used for abrasive slurry transportation systems.

140x140

Gold Mine Tailings Project – Africa



140x140

Wear-resistant pipeline systems for tailings handling applications.

140x140

Iron Ore Processing Plant – South America

140x140

Heavy-duty polyurethane-lined pipelines for concentrate transportation.



140x140

Power Plant Ash Handling System

140x140

Rubber-lined slurry pipelines for ash transportation applications.
