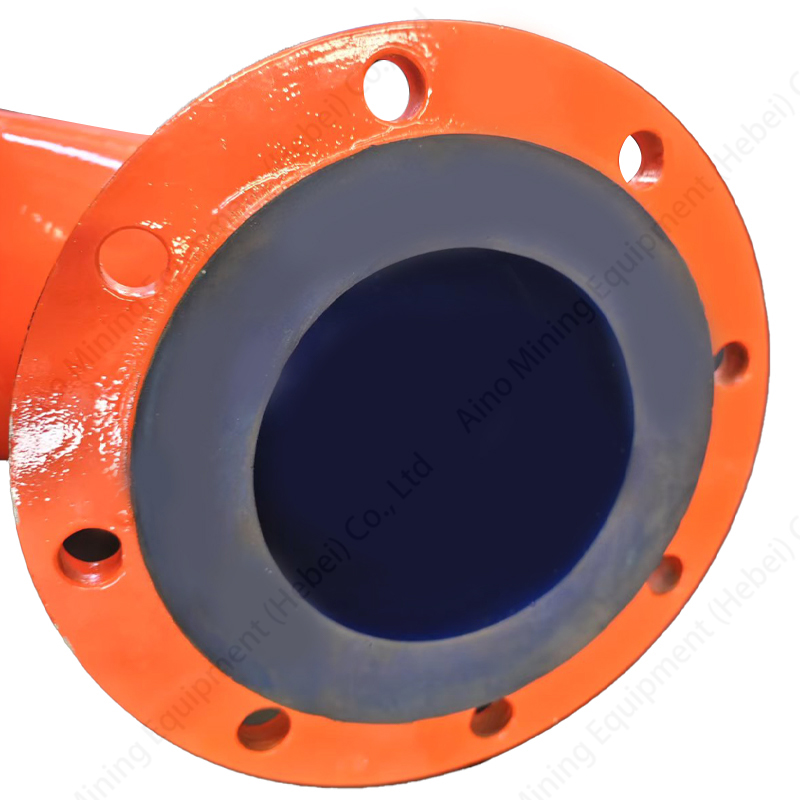

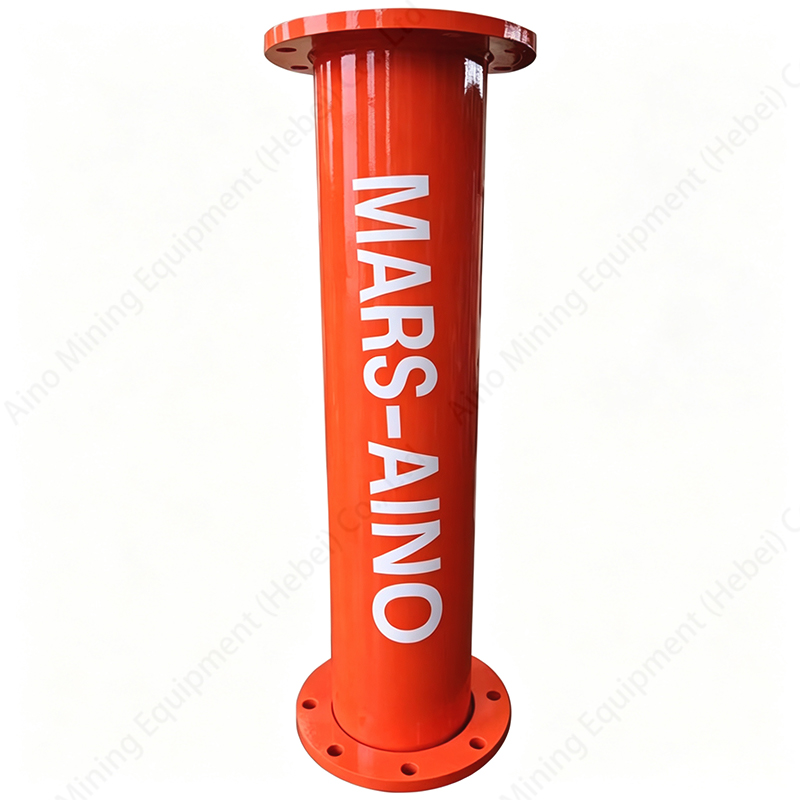

Polyurethane-lined Steel Pipes

Polyurethane-lined Steel Pipes

Heavy-Duty Polyurethane-Lined Steel Pipes for Abrasive Slurry Transportation

Polyurethane-lined steel pipes are specially engineered for highly abrasive and corrosive slurry transportation systems in mining, mineral processing, dredging, power plants, and industrial applications.

The combination of:

  • High-strength steel pipe
  • Wear-resistant polyurethane lining



Provides:

  • Excellent abrasion resistance
  • High pressure resistance
  • Strong structural support
  • Long service life
  • Reduced maintenance cost

Compared with ordinary steel pipes and rubber-lined pipes, polyurethane-lined steel pipes offer superior wear performance and excellent impact resistance in severe operating environments.

Item

Specification

Product Name

Polyurethane-Lined Steel Pipe

Pipe Structure

Steel Pipe + PU Lining

Pipe Diameter

DN25–DN1200

Steel Material

Carbon Steel / Stainless Steel

Lining Material

Polyurethane (PU)

PU Hardness

60–95 Shore A

Lining Thickness

Customized

Pipe Length

Customized

Working Pressure

Customized

Temperature Range

-40°C to +80°C

Connection Type

Flange / Clamp / Coupling

Application

Abrasive Slurry Transportatio





140x140

Wear resistance

140x140

Pressure resistance

140x140

Impact resistance

Product Structure

Polyurethane-lined steel pipes combine the strength of steel with the wear resistance of polyurethane.



1. Structural Layers

  • Outer Steel Pipe
  • High mechanical strength
  • Suitable for high-pressure systems
  • Strong structural support



2. Polyurethane Lining

  • Excellent abrasion resistance
  • Strong elasticity
  • Corrosion protection
  • Smooth flow surface

Industries & Applications



140x140

Mining Industry

140x140

Slurry transportation

140x140

Tailings pipelines



140x140

Cyclone feed systems

140x140

Ore concentrate pipelines

140x140

Mineral Processing Plants



140x140

Abrasive material conveying

140x140

Thickener underflow pipelines

140x140

Dredging Industry



140x140

Sand slurry transportation

140x140

River dredging systems

140x140

Power Plants



140x140

Ash slurry transportation

140x140

Desulfurization pipelines

140x140

Chemical Industry



140x140

Corrosive slurry handling

140x140

Cement powder conveying systems

140x140

Aggregate & Cement Industry



140x140

Sand and gravel transportation

140x140

Abrasive powder conveying





PU-Lined Steel Pipe VS Conventional Steel Pipe

Advantages of Polyurethane-Lined Steel Pipes





  • Excellent Abrasion Resistance：PU lining provides significantly better wear resistance than ordinary steel pipes.
  • High Structural Strength：Steel pipe body ensures safe operation under high pressure conditions.
  • Long Service Life：Greatly reduces pipeline replacement frequency and downtime.
  • Reduced Maintenance Cost：Lower wear rate means lower maintenance expenses.
  • Excellent Impact Resistance：Polyurethane absorbs impact energy from abrasive particles.
  • Corrosion Resistance：Suitable for wet and corrosive environments.
  • Smooth Flow Performance：Low friction coefficient reduces energy consumption.



140x140



Work Cond. & Material



  • Working Condition Analysis
  • We provide customized pipeline solutions according to:
  • Ore type
  • Slurry concentration
  • Particle size
  • Pressure conditions
  • Temperature
  • Flow velocity
  • Installation environment
  • Wear mechanism

Material Options



  • Polyurethane Material Options
  • Polyester polyurethane
  • Polyether polyurethane
  • Hydrolysis resistant PU
  • Anti-static polyurethane
  • Steel Pipe Material Options
  • Carbon steel
  • Stainless steel
  • Thick-wall steel pipe







Hardness Selection



Hardness

Recommended Application

60–70 Shore A

Flexible conveying conditions

80–90 Shore A

Standard slurry transportation

90–95 Shore A

Heavy abrasive applications





Customized Solutions

Customized Solutions Available，We support:



  • OEM manufacturing
  • Production according to drawings
  • Customized dimensions
  • Special flange standards
  • Different lining thicknesses
  • Customized pressure ratings
  • Customized ceramic arrangements

Engineering Services





  • Our engineering team can assist with:
  • Pipeline selection
  • Wear analysis
  • Drawing design
  • Material recommendation
  • Installation suggestions

Factory workshop photos + quality control flowchart



  • Manufacturing Capacity
  • We specialize in the manufacturing of mining wear-resistant pipeline systems.
  • Main Production Capabilities
  • PU casting production
  • Steel pipe fabrication
  • Polyurethane lining
  • CNC machining
  • Mold manufacturing
  • Welding and assembly
140x140



140x140

Quality Control



  • Every polyurethane-lined steel pipe undergoes:
  • Raw material inspection
  • Dimension inspection
  • Hardness testing
  • Adhesion testing
  • Pressure testing
  • Appearance inspection





Production Advantages



  • Experienced engineering team
  • Advanced production equipment
  • Stable production capacity
  • Fast response for custom projects
  • Export experience worldwide
140x140
140x140

Service Life



  • Polyurethane-lined steel pipes are designed for severe abrasive slurry transportation environments.
  • Compared with conventional steel pipelines:
  • Longer operational life
  • Reduced downtime
  • Lower maintenance frequency
  • Better wear resistance
  • Actual service life depends on:
  • Slurry properties
  • Particle size
  • Pressure conditions
  • Flow speed
  • Installation environment





TechnicalTechnical Support



We provide:



  • Technical consultation
  • Drawing confirmation
  • Material selection support
  • Installation guidance
  • After-sales support
140x140
140x140

Copper Mine Slurry Pipeline – Kazakhstan

140x140

Customized PU-lined steel pipes used in copper slurry transportation systems.

140x140

Gold Mine Tailings Project – Africa



140x140

Wear-resistant pipeline solution for tailings handling systems.

140x140

Iron Ore Processing Plant – South America

140x140

Heavy-duty polyurethane-lined pipelines for concentrate transportation.



140x140

Sand Dredging Project – Southeast Asia

140x140

Long-distance abrasive slurry transportation pipeline system.
